How to Specify Acrylic Entry-Edge Chamfers for LED Drawing Boards

1. Start with the acrylic entry-edge chamfer decision

Specify the panel entry edge with a drawing or identified limit sample that defines the chamfer or radius, deburring condition, finished thickness, protected surfaces and mating base slot. Approve insertion and removal on production-intended samples, then inspect geometry and function without treating a polished appearance as proof of dimensional fit.

A useful buying decision begins with the exact product configuration and customer task, not a generic claim about LED boards. For this topic, the controlled subject is the finished acrylic edge that enters and seats inside the illuminated base slot. Record finished panel thickness, chamfer or radius geometry, machining and polishing route, base slot width and lead-in, protective-film state, insertion angle and force before comparing samples. Those facts determine whether two units are genuinely comparable and prevent a visible difference from being attributed to the wrong material, component, power source, or process. This record remains specific to the acrylic entry-edge chamfer decision.

A visual sample can reveal the observed acrylic entry-edge chamfer condition, but it cannot establish every production lot, service environment, safety conclusion or destination-market requirement. The review should therefore separate three questions: what the buyer needs, what the identified sample actually demonstrates, and which conclusion still requires qualified engineering, laboratory, or destination-market review. That separation gives procurement teams a defensible basis for a request for quotation without turning a short sample observation into a lifetime, safety, or compliance promise. This record remains specific to the acrylic entry-edge chamfer decision.

Before contacting suppliers about acrylic entry-edge chamfer, assign an owner to the commercial need, an owner to the technical evidence, and a person authorized to accept a trade-off. Give them the same one-page brief and require each comment to reference the sample code or specification field. This simple handover matters when the importer, brand, testing adviser, inspection company, and factory work in different locations. It prevents a merchandising preference from being reported as a regulatory rule and prevents an unresolved technical question from disappearing inside a general approval. Record the final decision, evidence reviewed, open items, and next review trigger in language a future replenishment team can understand. This record remains specific to the acrylic entry-edge chamfer decision.

• Name the exact model, panel, base, cable, marker set, and operating condition involved.
• Use repeatable insertion and seating without objectionable scraping, chipping, stress whitening or unstable fit as the commercial decision rule.
• Record unknowns rather than filling them with catalogue assumptions.

2. Understand what can change the result

Entry behavior depends on finished panel thickness, chamfer width and symmetry, corner transition, tool marks, polishing loss, slot geometry, clamping force and protective-film condition.

acrylic entry-edge chamfer depends on the complete identified configuration

ACRYLITE fabrication guidance distinguishes machining and finishing steps and shows why edge preparation, tool condition and polishing method can change the resulting surface and geometry. A buyer does not need to reproduce a material-science laboratory to manage this risk, but the quotation and sample plan must identify the variables that the factory controls. Ask which inputs are fixed by drawing or bill of materials, which depend on the production route, and which can vary with environment or operator technique. This record remains specific to the acrylic entry-edge chamfer decision.

Primary technical references in this guide explain the general mechanism or measurement scope; they do not certify a LumDigi model or create a universal acceptance limit. Use them to ask better questions, then rely on product-specific drawings, supplier declarations, samples, and suitable test evidence. This is especially important when a method developed for sheet material, a connector, a lamp, or an art material is being used only as context for a finished drawing-board assembly. This record remains specific to the acrylic entry-edge chamfer decision.

• Identify the mechanism and the buyer decision before choosing a test.
• Keep finished panel thickness and chamfer or radius geometry visible in the evidence record.
• Use external references as context, not as certification of a LumDigi product.

3. Build a sample matrix before testing

Compare controlled configurations that isolate the variables most likely to change the acrylic entry-edge chamfer result.

Compare at least three coded entry-edge conditions in the same production-intended base and include a repeat sample from the proposed machining route. Give each unit a sample code and retain the configuration record with photographs taken before the review. If a supplier proposes an alternate input, make it a separate matrix row rather than silently replacing the approved reference. This protects the buyer from approving one combination and receiving another. This record remains specific to the acrylic entry-edge chamfer decision.

Keep the matrix small enough to interpret. Change one significant variable at a time where practical, while holding panel outline, base slot, material grade, protective film, insertion sequence and observation method constant. Include a repeat unit when the commercial risk is lot consistency rather than a one-off demonstration. A buyer sample is evidence for a defined decision; it is not automatically a statistically representative production result. This record remains specific to the acrylic entry-edge chamfer decision.

• Use coded samples and retain an untouched reference.
• Change one important variable at a time where practical.
• Record the actual product, setup and environment beside every result.

4. Use a repeatable review method

Use a written, repeatable method that reproduces the buyer's actual decision conditions without turning an in-house review into an unsupported certification claim.

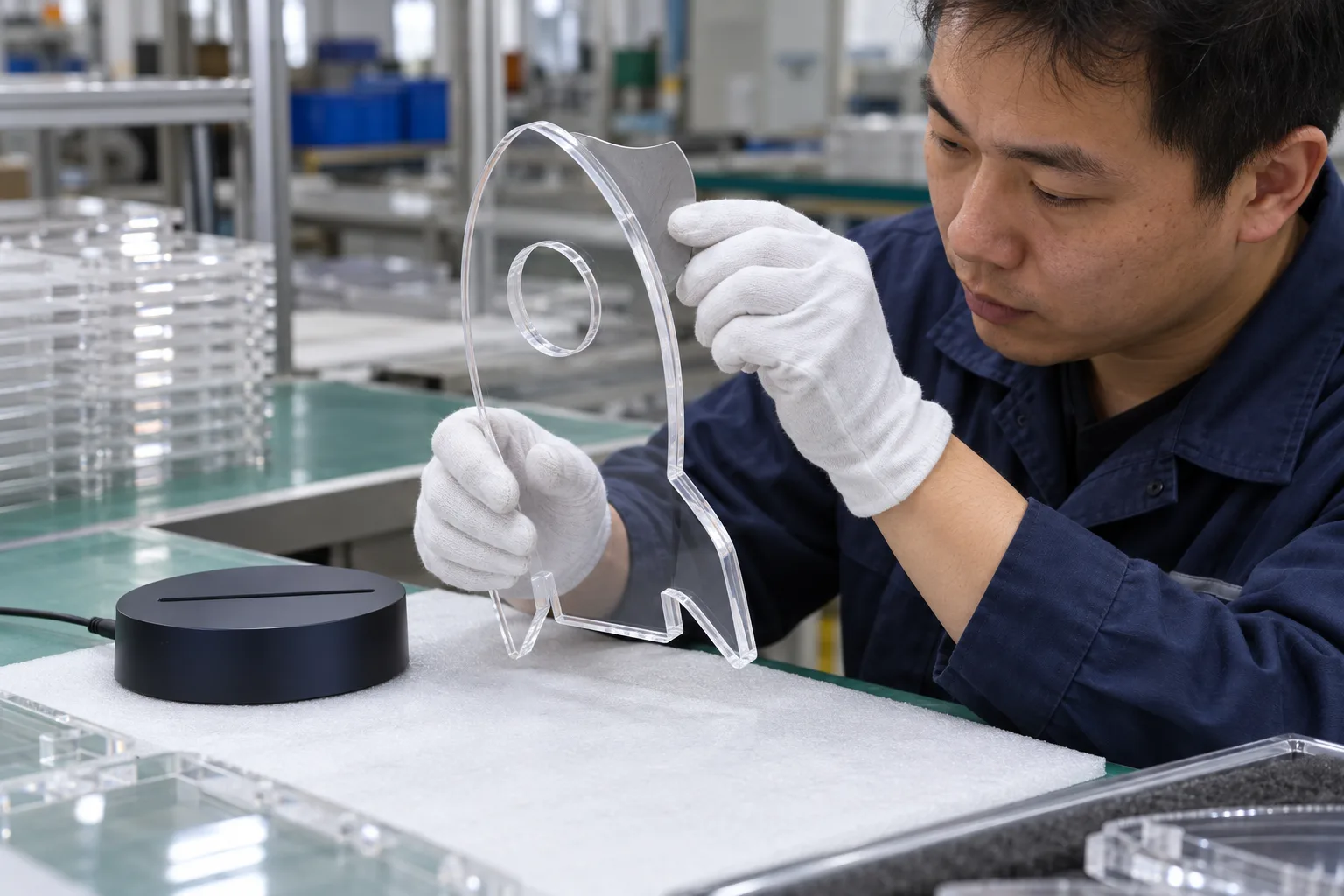

Photograph the edge profile before use, verify critical dimensions with an agreed method, perform a controlled insertion-removal sequence, and inspect both the edge and slot afterward. Write the sequence before viewing the result so observers do not change the method after seeing a preferred sample. Record setup, duration, handling, power source, room condition, and any cleaning or reset step that could influence the next observation. This record remains specific to the acrylic entry-edge chamfer decision.

Capture insertion force and smoothness, full seating, edge marks, stress whitening or chips, repeat removal condition. Use neutral photographs and short unedited video where motion or control behavior matters, and label every file with the sample code. Do not enhance glow, hide a defect with exposure, or crop away the cable and base when those elements are part of the question. Installation preparation should use only the proposed accessories and a stable, ordinary application setup. This record remains specific to the acrylic entry-edge chamfer decision.

• Photograph the starting condition before handling or adjustment.
• Use one defined sequence, observation distance and operating condition.
• Keep files traceable to the sample code and reviewer.

5. Interpret observations without overclaiming

Interpret the recorded evidence against the stated customer requirement and preserve open questions for the appropriate technical, legal or laboratory reviewer.

A sample review can show whether the observed configuration meets the buyer's stated task under recorded conditions. It cannot by itself establish every production unit, every environment, or an unspecified service period. Do not describe a visually glossy edge as dimensionally correct, safe or durable without configuration-specific evidence. If the buyer needs a measured value or regulated conclusion, define the applicable method, specimen, equipment, laboratory competence, and report before assigning a limit. This record remains specific to the acrylic entry-edge chamfer decision.

Use three result states: accepted for the defined purpose, rejected against a written criterion, or open pending evidence. Avoid labels such as premium, safe, durable, uniform, or compliant unless the claim has a defined meaning and support. Where two configurations both work, preserve the trade-off rather than forcing a winner. The best sourcing choice is the one that meets the customer requirement with controllable production and truthful product communication. This record remains specific to the acrylic entry-edge chamfer decision.

• Separate preference, functional acceptance and measured evidence.
• State the configuration and limitations beside the result.
• Reopen approval after a relevant material, process or component change.

6. Translate the decision into the RFQ

Turn the accepted acrylic entry-edge chamfer condition into explicit RFQ fields, sample references, evidence requests and change-notification rules.

The RFQ should identify panel material and thickness, entry-edge drawing, finish route, base slot configuration, fit sample, inspection and change control. Attach the sample matrix, approved photographs, and any drawing or artwork revision needed to make those fields unambiguous. Ask the supplier to mark confirmed, conditional, optional, and unsupported points. This produces comparable quotations and prevents an attractive reference image from becoming an unintended specification. This record remains specific to the acrylic entry-edge chamfer decision.

Request the proposed evidence with the quote: material or component identity, current datasheet where relevant, sample lead time, change-notification route, and the inspection checkpoint that will confirm production. Use LumDigi's custom design process for shape and presentation discussions, review a relevant shaped LED board reference, and send the controlled brief through the B2B enquiry page. Availability and final specifications must be confirmed for the selected model. This record remains specific to the acrylic entry-edge chamfer decision.

• Require a response against every named field.
• Attach approved sample photographs and document revisions.
• Mark confirmed, conditional, excluded and unresolved items separately.

7. Carry the approved condition into production

Hold the approved inputs and process conditions through incoming review, assembly and in-process verification, then document any authorized deviation.

Production control should cover router or cutter condition, deburring operation, polishing allowance, edge protection, slot-to-panel pairing, approved sample retention. Link each checkpoint to a drawing, bill-of-material line, approved sample, work instruction, or recorded setting rather than relying on memory. If a change affects the mechanism discussed in this guide, pause and evaluate it against the approved decision before allowing the new condition into the order. This record remains specific to the acrylic entry-edge chamfer decision.

Factory testing should answer the commercial question with a repeatable method and traceable units. It should not be described as third-party certification unless it genuinely is. Retain representative evidence from start-up, in-process review, and the production lot where the risk justifies it. For a custom shape or private-label set, synchronize the panel, base, marker, cable, insert, and pack revisions so a correct component is not assembled into the wrong configuration. Compare the evidence plan with this related buyer guide before final approval. This record remains specific to the acrylic entry-edge chamfer decision.

• Link checkpoints to the bill of materials, drawing or work instruction.
• Retain start-up and in-process evidence from identified units.
• Route changes through written buyer approval when they affect the decision.

8. Verify the shipment-level evidence

Verify the agreed acrylic entry-edge chamfer evidence on identified finished units and connect findings to an authorized release, correction, reinspection or hold decision.

Shipment inspection can check profile and burr condition, finished thickness, fit in correct base, surface marks, sample and drawing revision, using the buyer's approved references and sampling instruction. The report should identify the lot, selected units, method, actual observations, photographs, limitations, and disposition. A pre-shipment check is valuable commercial evidence, but it does not replace material qualification, laboratory testing, or regulatory assessment required for the destination market. This record remains specific to the acrylic entry-edge chamfer decision.

When a finding occurs, describe it against the requirement and separate observation from cause. Define correction, reinspection, concession, or hold authority before shipment release. Archive the report with the purchase order, change notices, and approved sample. This creates a practical trace from customer requirements to production and reduces disputes built on unlabeled photos or recollection. This record remains specific to the acrylic entry-edge chamfer decision.

• Record the lot, variant, selected unit and method.
• Describe observations against the written requirement.
• Archive findings, corrections and final disposition together.

9. Conclusion: make acrylic entry-edge chamfer a controlled buying decision

Control acrylic entry-edge chamfer through a defined requirement, identified samples, repeatable evidence, production checkpoints and truthful claim boundaries.

A controlled entry edge is a mating feature, not merely a cosmetic line, so geometry and function must remain connected from sample approval through shipment. The process is intentionally narrower than a broad product claim: define the need, compare identified configurations, record the method, and translate the decision into production and inspection controls. That sequence gives retail, distribution, and private-label teams information they can explain accurately to colleagues and customers. A supporting procurement guide can be used to align the adjacent buying decision without collapsing two specifications into one. This record remains specific to the acrylic entry-edge chamfer decision.

For LumDigi, send the target market, channel, preferred board shape, power arrangement, marker set, quantity scenario, packaging direction, and the specific acrylic entry-edge chamfer question. LumDigi can confirm facts for offered configurations and organize a relevant sample discussion. Buyers remain responsible for destination-market decisions and should use qualified reviewers where standards, safety, legal, or laboratory conclusions are required. This record remains specific to the acrylic entry-edge chamfer decision.

• Approve a complete configuration rather than an isolated photograph.
• Keep product, artwork, instructions and inspection evidence aligned.
• Reconfirm the decision after relevant changes.
